Basic_PThread Class Reference

#include <Basic_PThread.hpp>

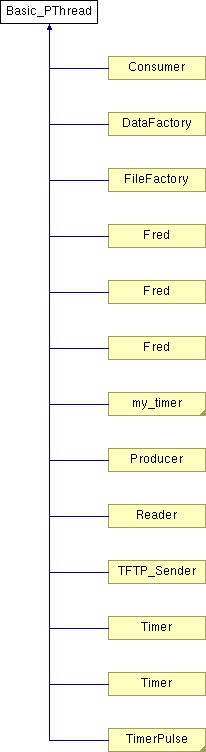

Inheritance diagram for Basic_PThread::

Consumer DataFactory FileFactory Fred Fred Fred my_timer Producer Reader TFTP_Sender Timer Timer TimerPulse List of all members.

Public Methods

__inline Basic_PThread (bool autostart=false, bool autojoin=false)
virtual __inline ~Basic_PThread ()
__inline pthread_t getPID ()
virtual void run ()=0
__inline void startrel (int p)
void start (int start_prio=10)
__inline void yield ()
__inline void stop ()
__inline void end ()
__inline bool isStarted ()
__inline void join (void **value_ptr=NULL)
__inline void detach ()
__inline Basic_PThread (bool autostart=false, bool autojoin=false)
virtual __inline ~Basic_PThread ()
__inline pthread_t getPID ()
virtual void run ()=0
void start (int start_prio=10)
__inline void yield ()
__inline void stop ()
__inline void end ()
__inline bool isStarted ()
__inline void join (void **value_ptr=NULL)
__inline void detach ()

Static Public Methods

void * Basic_PThread::Wrapper (void *ptrThis)
void * Basic_PThread::Wrapper (void *ptrThis)

Protected Attributes

pthread_t pid
bool isDetached
pthread_attr_t attr
sched_param param
int priority

Private Methods

__inline Basic_PThread (const Basic_PThread &src)
__inline const Basic_PThread & operator= (const Basic_PThread &src)
__inline Basic_PThread (const Basic_PThread &src)
__inline const Basic_PThread & operator= (const Basic_PThread &src)

Constructor & Destructor Documentation

__inline Basic_PThread::Basic_PThread (  bool    autostart = false,
bool    autojoin = false
)


Definition at line 35 of file Basic_PThread.inl.

Referenced by INVALID_PID().

00036   : pid( INVALID_PID ), isDetached( TRUE )
00037  {
00038    if ( autostart ) start();
00039    if ( autojoin  ) join();
00040  }

__inline Basic_PThread::~Basic_PThread (    )  [virtual]


Definition at line 43 of file Basic_PThread.inl.

Referenced by INVALID_PID().

00044  {
00045    stop();
00046    end();
00047  }

__inline Basic_PThread::Basic_PThread (  const Basic_PThread &    src )  [private]


__inline Basic_PThread::Basic_PThread (  bool    autostart = false,
bool    autojoin = false
)


virtual __inline Basic_PThread::~Basic_PThread (    )  [virtual]


__inline Basic_PThread::Basic_PThread (  const Basic_PThread &    src )  [private]


Member Function Documentation

void* Basic_PThread::Basic_PThread::Wrapper (  void *    ptrThis )  [inline, static]


Definition at line 90 of file Basic_PThread.hpp.

00091    {
00092      Basic_PThread* me = (Basic_PThread*)ptrThis;
00093
00094      // Call the derived classes version, since the function
00095      // run is implemented by it's children
00096      me->run();
00097
00098      // run() should contain an Infinite Loop, i.e. for(;;) { ... }
00099      // Exit beautifully, just in case there is no infinite loop.
00100
00101      me->pid = INVALID_PID;
00102      pthread_exit( NULL );
00103
00104      return NULL;
00105    }

void* Basic_PThread::Basic_PThread::Wrapper (  void *    ptrThis )  [inline, static]


Definition at line 89 of file Basic_PThread.hpp.

00090    {
00091      Basic_PThread* me = (Basic_PThread*)ptrThis;
00092
00093      // Call the derived classes version, since the function
00094      // run is implemented by it's children
00095      me->run();
00096
00097      // run() should contain an Infinite Loop, i.e. for(;;) { ... }
00098      // Exit beautifully, just in case there is no infinite loop.
00099
00100      me->pid = INVALID_PID;
00101      pthread_exit( NULL );
00102
00103      return NULL;
00104    }

__inline void Basic_PThread::detach (    )


__inline void Basic_PThread::detach (    )


Definition at line 75 of file Basic_PThread.inl.

00076  {
00077    if ( pid < 0    ) return;
00078    if ( isDetached ) return;
00079
00080    int err = pthread_detach( pid );
00081    isDetached = TRUE;
00082
00083    MC_OnError( err, Error, "An error occured while detaching a PThread." );
00084  }

__inline void Basic_PThread::end (    )


__inline void Basic_PThread::end (    )


Definition at line 56 of file Basic_PThread.inl.

Referenced by ~Basic_PThread().

00056                                 {
00057    pthread_exit( NULL );
00058  }

__inline pthread_t Basic_PThread::getPID (    )


__inline pthread_t Basic_PThread::getPID (    )


Definition at line 60 of file Basic_PThread.inl.

Referenced by INVALID_PID().

00061  {
00062    return pid;
00063  }

__inline bool Basic_PThread::isStarted (    )


__inline bool Basic_PThread::isStarted (    )


Definition at line 65 of file Basic_PThread.inl.

00066  {
00067    return ( pid >= 0 && (signed long)pid != INVALID_PID );
00068  }

__inline void Basic_PThread::join (  void **    value_ptr = NULL )


__inline void Basic_PThread::join (  void **    value_ptr = NULL )


Definition at line 87 of file Basic_PThread.inl.

Referenced by Basic_PThread(), and main().

00088  {
00089    int err = 0;
00090    if ( pid < 0 ) return;
00091    if ( !isDetached )
00092      err = pthread_join( pid, value_ptr );
00093
00094     isDetached = FALSE;
00095     MC_OnError( err, Error, "An error occured while joining a PThread." );
00096   }

__inline const Basic_PThread& Basic_PThread::operator= (  const Basic_PThread &    src )  [private]


__inline const Basic_PThread& Basic_PThread::operator= (  const Basic_PThread &    src )  [private]


Referenced by INVALID_PID().

virtual void Basic_PThread::run (    )  [pure virtual]


Reimplemented in Timer, Fred, Producer, Consumer, Fred, Reader, my_timer, TimerPulse, DataFactory, FileFactory, TFTP_Sender, Timer, and Fred.

virtual void Basic_PThread::run (    )  [pure virtual]


Reimplemented in Timer, Fred, Producer, Consumer, Fred, Reader, my_timer, TimerPulse, DataFactory, FileFactory, TFTP_Sender, Timer, and Fred.

Referenced by Basic_PThread::Wrapper(), and INVALID_PID().

void Basic_PThread::start (  int    start_prio = 10 )


void Basic_PThread::start (  int    start_prio = 10 )


Definition at line 33 of file Basic_PThread.cpp.

Referenced by Basic_PThread(), main(), TimerPulseTest::start(), and startrel().

00034  {
00035    if ( pid >= 0 && (signed long)pid != INVALID_PID ) return;
00036
00037    memset( &attr,  0, sizeof( attr  ) );
00038    memset( &param, 0, sizeof( param ) );
00039
00040    register int rc = EOK;
00041
00042    rc = pthread_attr_init(            &attr );
00043    MC_OnError( rc, Error, "while initializing a basic pthread attribute." )
00044
00045    rc = pthread_attr_setdetachstate(  &attr, PTHREAD_CREATE_DETACHED );
00046    MC_OnError( rc, Error, "while setting a basic pthread attribute to detached." )
00047
00048    rc = pthread_attr_setscope(        &attr, PTHREAD_SCOPE_SYSTEM );
00049    MC_OnError( rc, Error, "while setting a basic pthread attribute to system scope." )
00050
00051    rc = pthread_attr_setinheritsched( &attr, PTHREAD_EXPLICIT_SCHED );
00052    MC_OnError( rc, Error, "while setting a basic pthread attribute to explicit scheduling." )
00053
00054    priority = start_prio;
00055    attr.param.sched_priority = start_prio;
00056
00057    rc = pthread_attr_setschedpolicy( &attr, SCHED_RR );
00058    MC_OnError( rc, Error, "while setting a this pthread parameter to Round-Robin." )
00059
00060    // Call the static Wrapper() which will call the dynamic run()
00061    rc = pthread_create( &pid, &attr, Wrapper, (void*)this );
00062
00063    if ( rc == -1 ) {
00064      printf( "Forgot to include libraries:"
00065              "g++ -lpthread -lrt -lsocket -lnsl -g Basic_PThread.cpp" );
00066    }
00067
00068    MC_OnError( rc, Error, "while starting a basic pthread." )
00069
00070    pthread_detach( pid );
00071
00072    // pthread_exit( NULL );
00073  }

__inline void Basic_PThread::startrel (  int    p )  [inline]


Definition at line 107 of file Basic_PThread.hpp.

00107                                  {
00108      start( getprio( 0 ) + p );
00109    }

__inline void Basic_PThread::stop (    )


Reimplemented in TimerPulse.

__inline void Basic_PThread::stop (    )


Reimplemented in TimerPulse.

Definition at line 49 of file Basic_PThread.inl.

Referenced by ~Basic_PThread().

00049                                  {
00050    if ( pid < 0 ) return;
00051
00052    pthread_cancel( pid );
00053    pid = INVALID_PID;
00054  }

__inline void Basic_PThread::yield (    )


__inline void Basic_PThread::yield (    )


Definition at line 70 of file Basic_PThread.inl.

00071  {
00072    sched_yield();
00073  }

Member Data Documentation

pthread_attr_t Basic_PThread::attr [protected]


Definition at line 137 of file Basic_PThread.hpp.

bool Basic_PThread::isDetached [protected]


Definition at line 136 of file Basic_PThread.hpp.

sched_param Basic_PThread::param [protected]


Definition at line 138 of file Basic_PThread.hpp.

pthread_t Basic_PThread::pid [protected]


Definition at line 135 of file Basic_PThread.hpp.

Referenced by Basic_PThread::Wrapper().

int Basic_PThread::priority [protected]


Definition at line 139 of file Basic_PThread.hpp.

The documentation for this class was generated from the following files:
